Serverside Webscripting [JLW322]

02.client.server

Client - Server Model

Client?

  • A client is a piece of software, not hardware
  • Examples
    • Web clients
      • Firefox, Internet Explorer, Chrome, Opera, …
    • Mail clients
      • Outlook, Thunderbird, Mail.app, …
    • FTP-Clients
      • FileZilla, SmartFTP, FlashFXP, Transmit, Cyberduck, …
  • Client Universalis: telnet

Examples of clients

Server?

  • A server is a piece of software, not hardware
  • Examples
    • Web servers
      • Apache, Lighttpd, Nginx, Internet Information Services (IIS), …
    • Mail servers
      • Postfix, Kerio, …
    • FTP servers
      • PureFTPd, Serv-U, …
    • Database servers
      • MySQL Server, MS SQL Server, PostgreSQL, …

Examples of servers

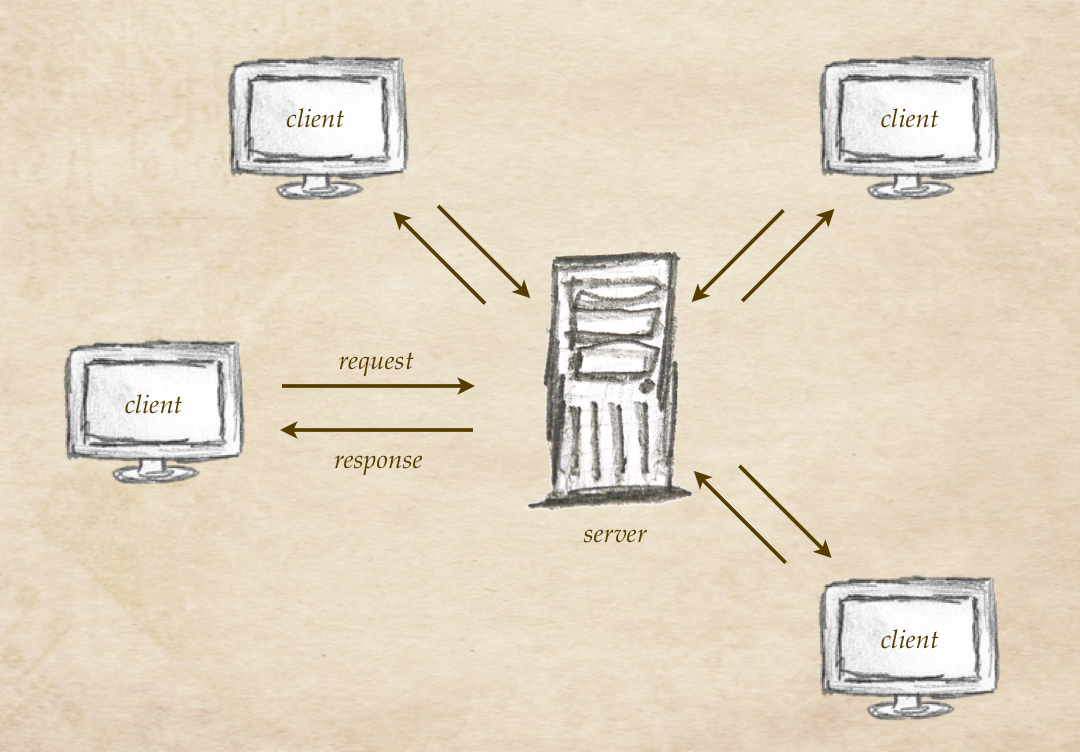

Client-Server Relation

  • A client asks a question to the server by sending a request to the server
  • A server answsers incomings questions by sending a response back to the client

Client-Server Relation
Client-Server Relation

Ports & Protocols

  • A server listens onto a specific port for incoming requests
    • Examples
      • Web servers
        • Port 80 or 8080 (http)
        • Port 443 (https)
      • Mail servers
        • Port 25 (SMTP)
        • Port 100 or 995 (POP3)
      • FTP servers
        • Port 21
      • Database servers
        • Port 3306 (MySQL)
  • A protocol defines how connections are made and how questions should be asked + answered to.
    • Example: MySQL connects over TCP and uses Structured Query Language for asking questions
These ports are defaults, it's possible to change these via the configuration file of the server

The HTTP Protocol

Sniffers

  • A sniffer captures client-server traffic
    • Some allow you not only to view but also manipulate traffic
  • General TCP sniffers
    • Wireshark, TCPDump, Microsoft Network Monitor, ...
  • Specific HTTP sniffers
    • LiveHTTPHeaders, Wireshark, Fiddler HTTP Debugger, Charles Web Debugging Proxy, ...

Demo time!

Let's use Charles to analyze a visit to http://www.ikdoeict.be/ and thereby study the HTTP protocol which is defined in RFC 2616

Charles Web Debugging Proxy

Request format (1)

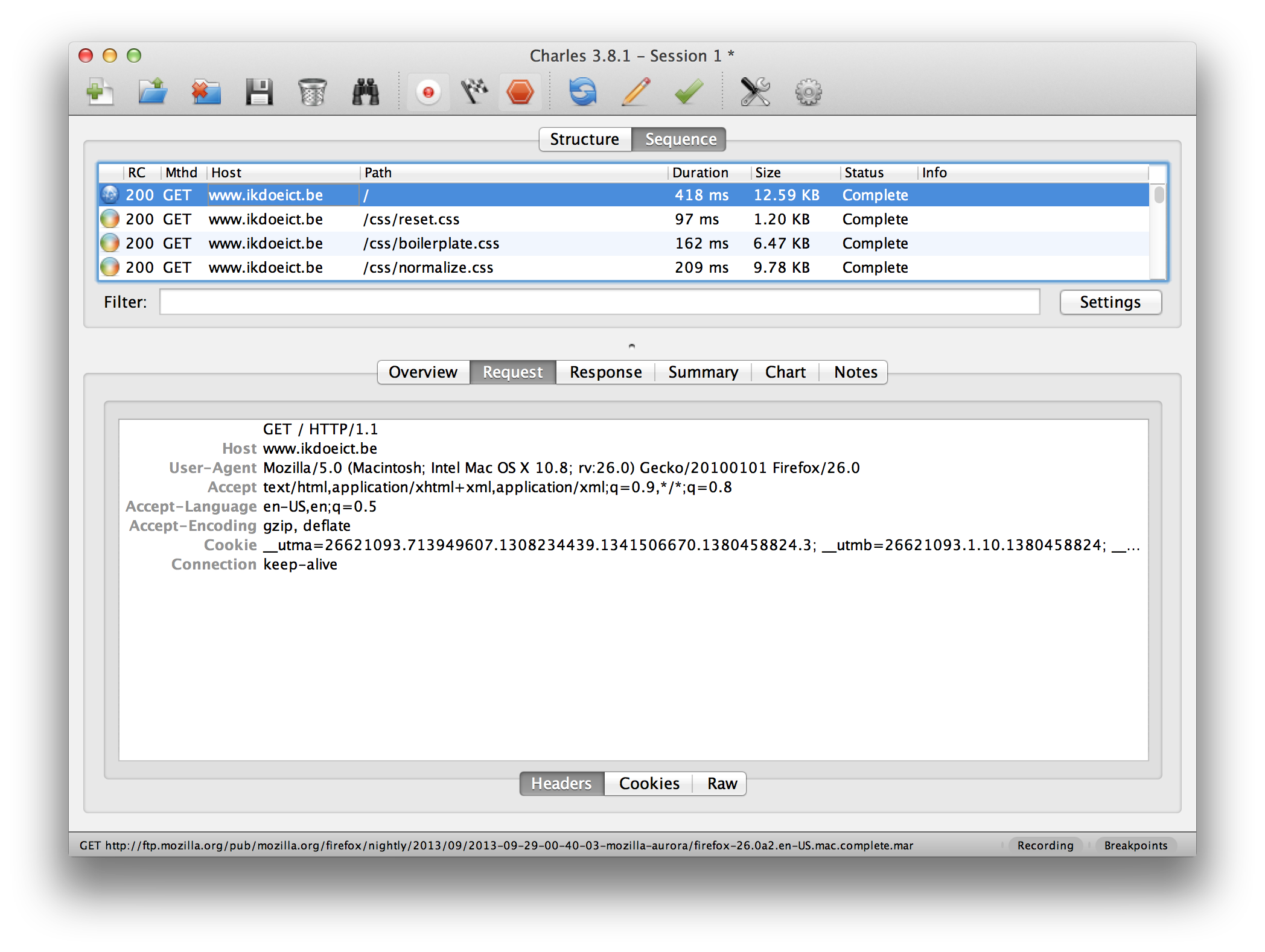

Charles example: google.be: Request

Request format (2)

  • Request consists of two parts: head and body
    • Request head and body are separated by an empty line
    • Request head always comes before the request body
    • Request body is empty here (more on that later)
  • First line of the request head is the request line
    GET / HTTP/1.1
    1. Method: OPTIONS, GET, POST, HEAD, PUT, DELETE, TRACE, or CONNECT
    2. Request-URI: Requested page (here /)
    3. HTTP version: always HTTP/1.1

Request format (3)

  • Other lines of the request head are called headers
    Host: www.ikdoeict.be
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10.8; rv:26.0) Gecko/20100101 Firefox/26.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Cookie: PREF=ID=39391363bc...xdN
    • Format is Key: Value
      • Keys always start with capital letter
      • Host is mandatory: it tells the server which site you want to access
        (→ it's possible to host serveral domains on one and the same web server)
      • Some other predefined keys: Accept, Accept-Charset, Accept-Encoding, Accept-Language, Authorization, If-Match, Referer, User-Agent
      • Custom keys allowed with X- prefix

Response format (1)

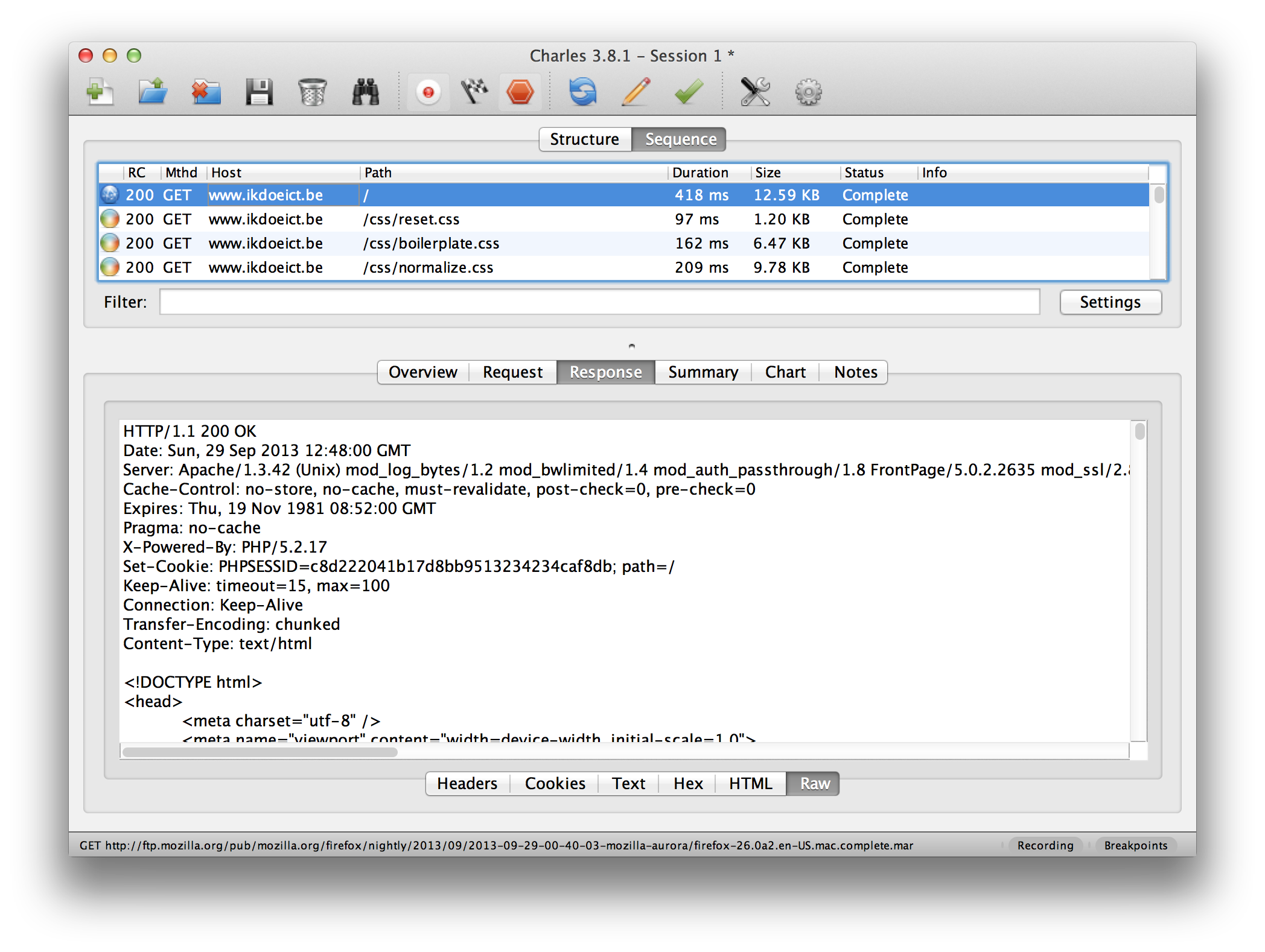

Charles example: google.be: Response

Response format (2)

  • Response consists of two parts: head and body
    • Response head and body separated by an empty line
    • Response head always comes before the request body
    • Response body is the actual content returned (here a blob of HTML)
      • Note: the response body contains both HTML <head> and <body> — not to be confused with the response head/response body!
  • First line of the response head is the status line
    HTTP/1.1 200 OK
    1. HTTP version: same version as requested (here: HTTP/1.1)
    2. Status-Code & Reason Phrase: (see next slide)
  • Other lines are headers returned by the server.
    • Some predefined keys: Age, Location, Retry-After, Server
    • Custom keys allowed with X- prefix

Response format (3)

  • Status codes are grouped
    • 1xx: Informational
    • 2xx: Success
      • e.g. 200 - OK
    • 3xx: Redirection
      • e.g. 301 - Moved Permanently
      • e.g. 302 - Found
      • e.g. 304 - Not Modified
    • 4xx: Client Error
      • e.g. 400 - Bad Request
      • e.g. 401 - Unauthorized
      • e.g. 403 - Forbidden
      • e.g. 404 - Not Found
    • 5xx: Server Error
      • e.g. 500 - Internal Server Error
  • Full overview: http://httpstatus.es/ or http://httpstat.us/

The browser

  • When the HTML has arrived (or parts of it if flushed prematurely) the browser will check the HTML for other files (such as CSS, JS, images, etc) to get
    • These files are requested separately

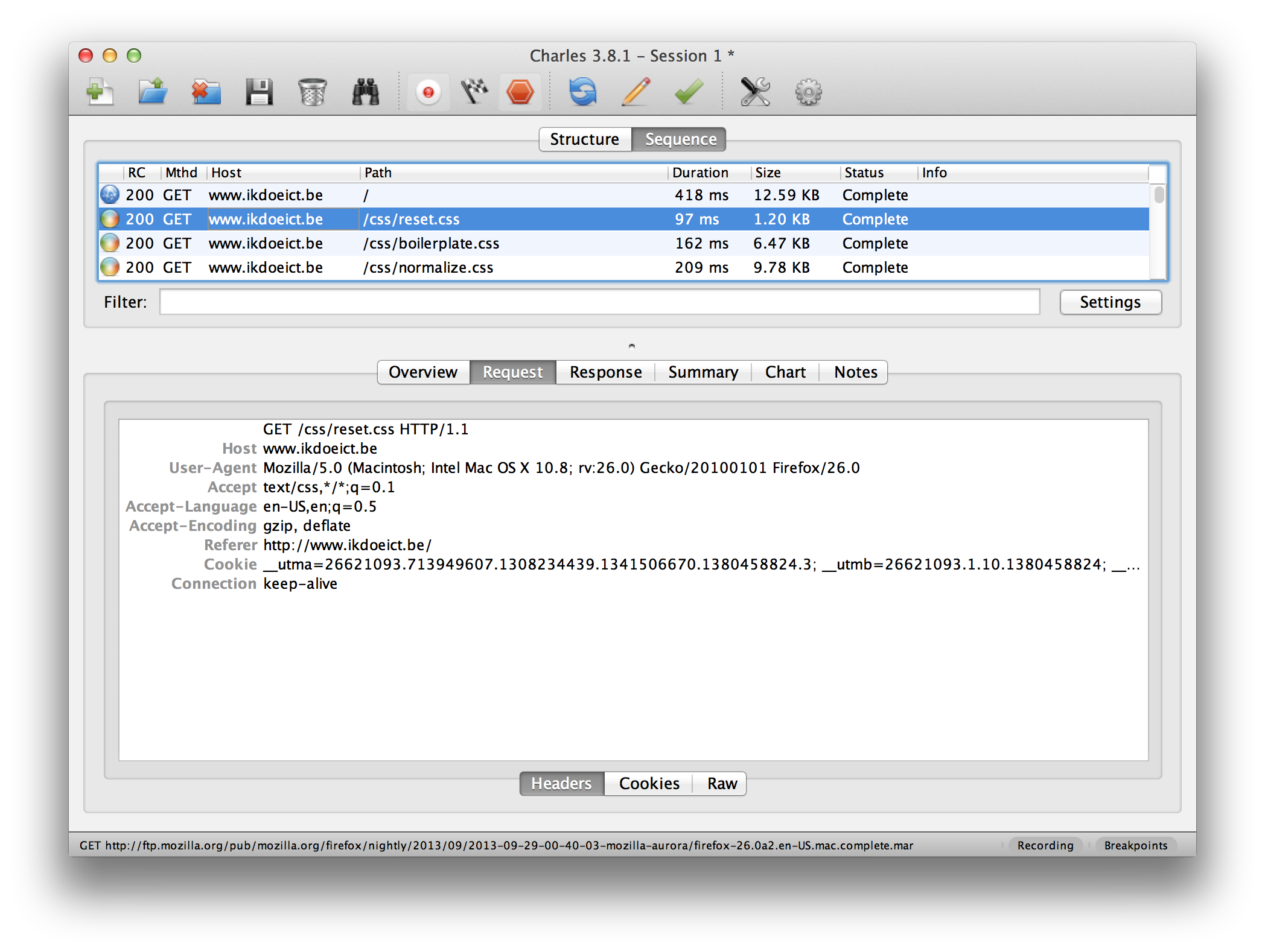

Charles example: www.ikdoeict.be: Requesting other files

If you're feeling geeky

  • As the HTTP protocol runs over TCP and is plaintext, it's possible to telnet to a webserver
    bramus$ telnet www.ikdoeict.be 80
Trying 178.18.22.176...
Connected to www.ikdoeict.be.
Escape character is '^]'.
HEAD / HTTP/1.1
Host: www.ikdoeict.be
Content-Length: 8

s=bramus
    HTTP/1.1 200 OK
Date: Sun, 29 Sep 2013 13:10:48 GMT
Server: Apache/1.3.42 (Unix) mod_log_bytes/1.2 mod_bwlimited/1.4 mod_auth_passthrough/1.8 FrontPage/5.0.2.2635 mod_ssl/2.8.31 OpenSSL/0.9.7a
Cache-Control: no-store, no-cache, must-revalidate, post-check=0, pre-check=0
Expires: Thu, 19 Nov 1981 08:52:00 GMT
Pragma: no-cache
X-Powered-By: PHP/5.4.20
Set-Cookie: PHPSESSID=7b25f....a52e67; path=/
Content-Type: text/html

Webservers: Serverside scripts

How to reach a server

  • Use its IP address or network/netbios name or hostname
    • 192.168.0.2 or brm.local or ikdoeict.be
      • When not using an IP, DNS will translate the hostname into an IP
    • Server running on your own machine?
      • Use the local loop: 127.0.0.1 or localhost

How to reach a Web Server

  • Access a web server by using a web client (web browser)
    • Type in any the IP Address or Hostname in the address bar.
      • Most of the time you'll need to use the hostname, as one web server can serve multiple websites/domains.
  • By default, the http protocol is used
    • Typing in www.ikdoeict.be/ is the same as http://www.ikdoeict.be/
  • By default, port 80 (http) or 443 (https) is used
    • If the server is running on a different port, speficy it after the hostname separated by a colon http://www.ikdoeict.be:8080/

Tasks of a webserver

  • In short:
    • Listen for incoming requests and serve the requested file
  • In depth:
    • Serve files for a multitude of hosts/domains
    • Inform the client about redirects
    • Virtual Directories
    • Timeouts
    • Logging
    • ...

Serving files

  • Files can be served directly
    • e.g. HTML, CSS, images, video, …
  • Files can be processed at runtime
    • Based on the extension, the server will process the file before sending it to the client
    • PHP has plugins to have a webserver parse a file ending in .php before sending it's output to the client
      • That way, we can use PHP to generate HTML based on some conditions calculated on the server
    • Other serverside scripting languages: ASP, .NET, ColdFusion, etc.
(If you want, you can have other file extensions to be run through the PHP interpreter)

Example: ASP Page (1)

  • Consider this code
    <!DOCTYPE html>
<html>
<head>
    <title>Sample ASP Page</title>
    <meta charset="UTF-8" />
</head>
<body>
<%

    Response.Write "<Hello, I am an ASP script!";

%>
</body>
</html>

Example: ASP Page (2)

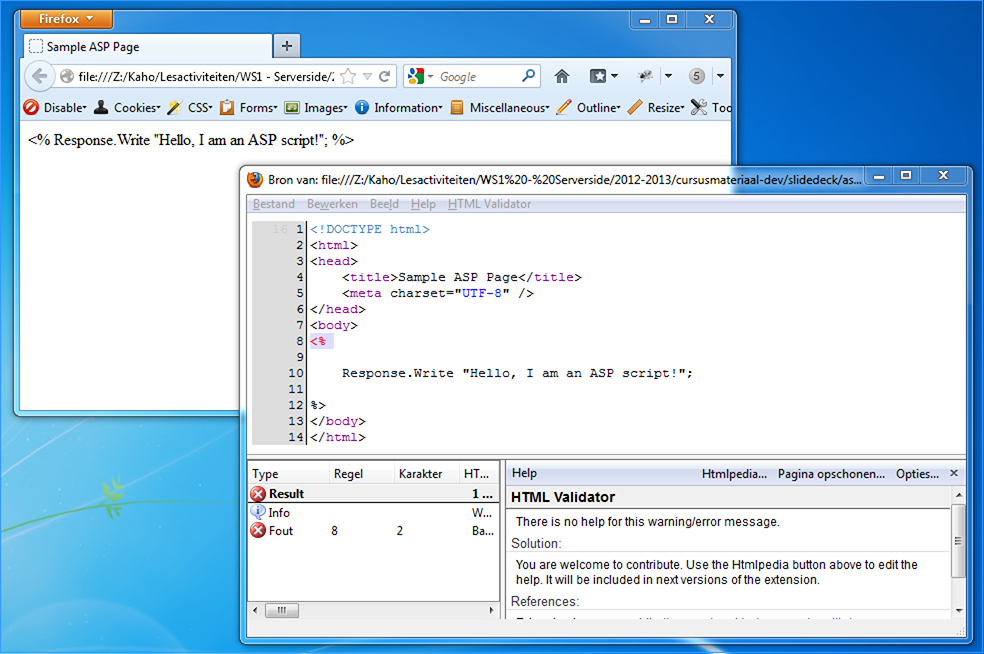

  • Opened directly in browser via File > Open...
A .asp file opened directly by the browser

If you open a file directly from disk, it remains unparsed!

Example: ASP Page (3)

  • Opened via a webserver
A .asp file served by the webserver to the browser

A file served by the webserver is parsed before being sent to the client

Parsing Files (1)

Parsing schematic
Parsing schematic
  • The webserver is configured to have an ASP interpreter (asp.dll) parse any files ending in .asp.
  • The interpreter converts the ASP code to text, which is then served to the client.
    • And if that text happens to be anything HTML-like …

Parsing Files (2)

  • Every language has its own interpreter and syntax
    <% Response.Write "I am ASP"; %>
    <?php echo 'I am PHP'; ?>
    <% out.println("I am JSP"); %>
    <cfoutput>#"I am ColdFusion"#</cfoutput>
    print "I am Perl";

What to choose?

... but we'll choose ;-)

Questions?

Sources

ikdoeict.be
